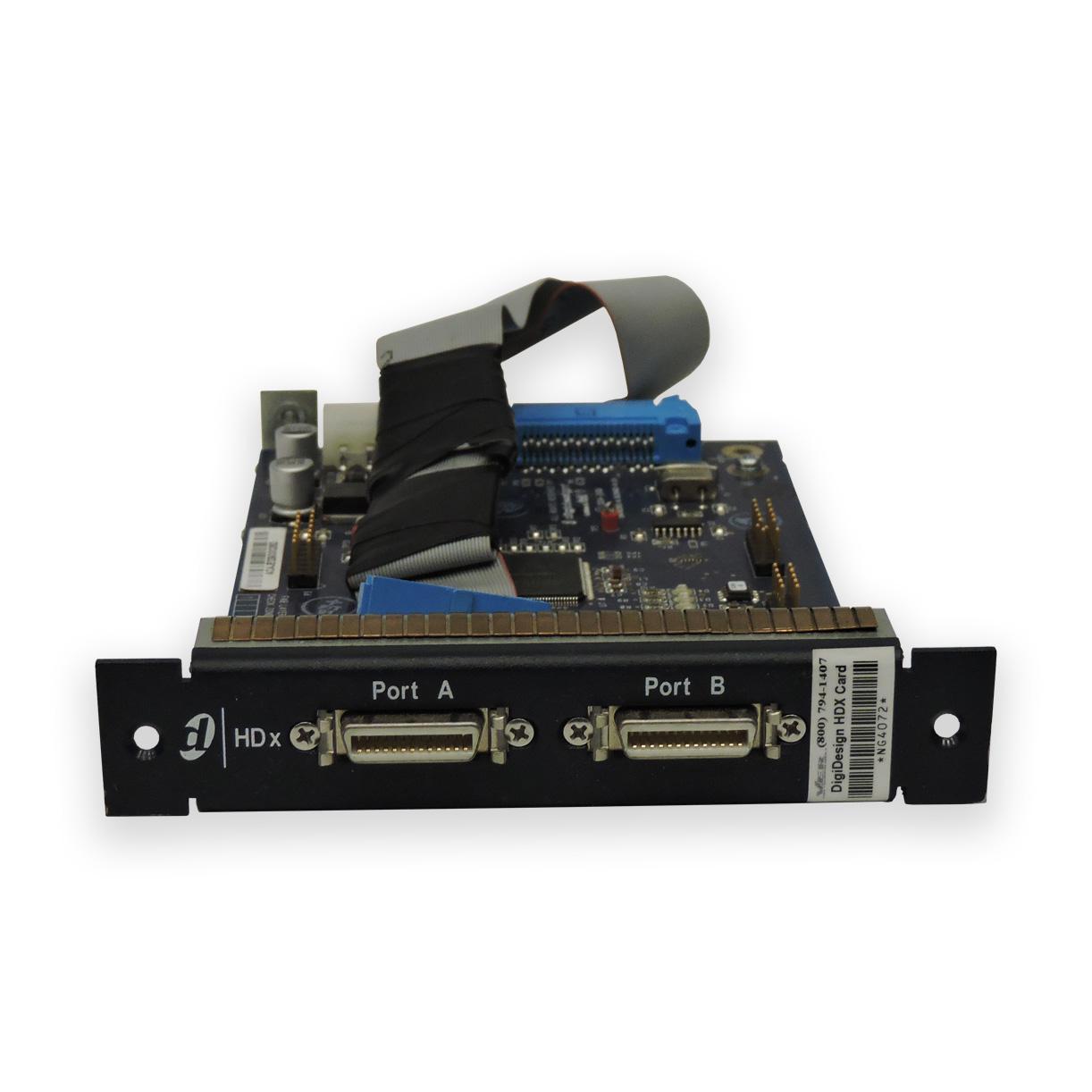

AVID Venue HDX TDM Card

Provides a direct connection of up to 64 channels of 24-bit, 48 kHz digital audio between a VENUE system and a Pro Tools|HD system using DigiLink cables (purchased separately).

Record up to 128 channels of digital audio (up to 96 Stage inputs and up to 32 assignable channels) into Pro Tools (with two HDx cards).

Playback up to 128 Pro Tools tracks directly into a VENUE system (with two HDx cards).

Provides a one-for-one digital split of all Stage input channels 1-48 without needing to crosspatch or configure the VENUE software Patchbay.

Provides an additional 16 user-assignable input and 16 user-assignable output channels (configured in the VENUE software Patchbay), which can be used for any combination of recording and playback (including simultaneous playback and recording).

Provides a redundant output configuration in which you can do the following:

With two HDx cards installed, record all 48 Stage inputs, plus any assignable outputs, to two independent, 64-channel Pro Tools|HD systems.

With an HDx card and a VENUE MADI card installed, record all 48 Stage inputs, plus any assignable outputs, to a Pro Tools|HD system, and transmit the same channels to an external MADI device.
