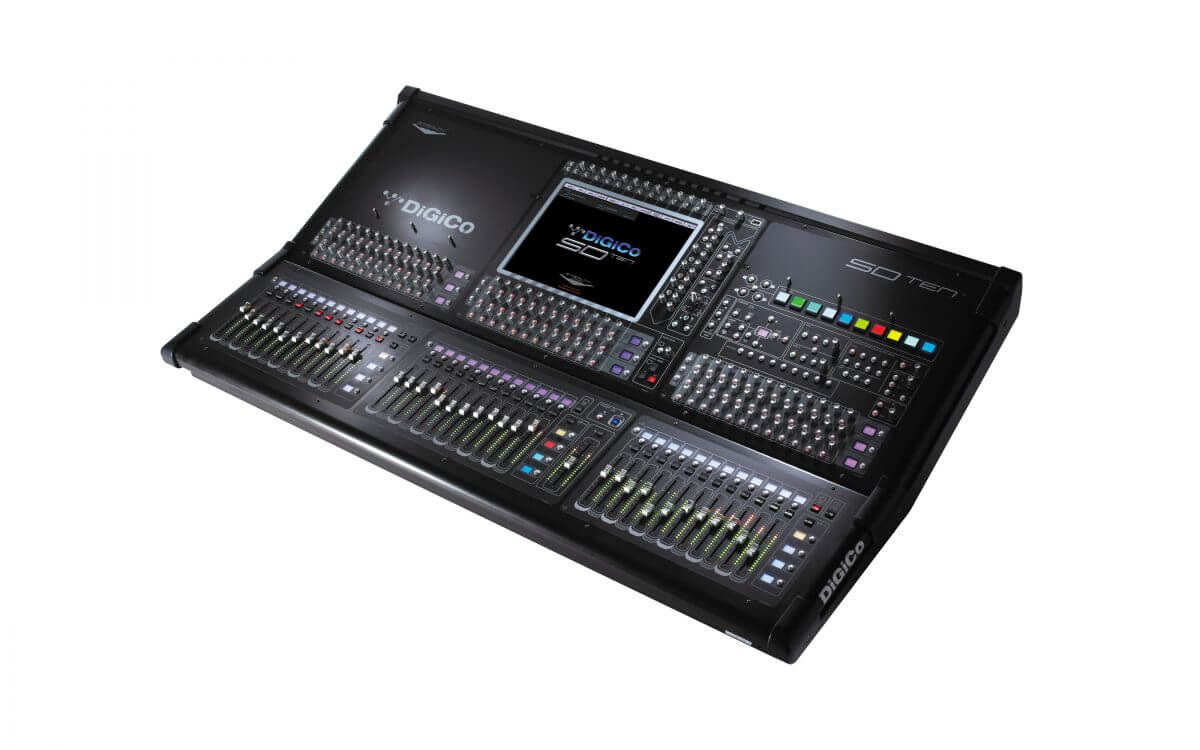

The Digico SD10 digital mixing console is the trusted choice of engineers the world over, delivering a wealth of flagship features derived from the market-leading SD7, plus substantial audio firepower in a fully-loaded console. Driven by Stealth Digital Processing and floating-point Super FPGA technology, the SD10 packs the power and flexibility to meet even the most demanding requirements. Ease of operation is assured with three banks of 12 motorised faders and one master fader, each with its own high resolution LED bar graph meter.

With 144 processing channels at 48kHz/96kHz, it’s more than capable of handling even the most challenging shows. Standard channel processing across inputs and outputs includes delay, single and multi-channel presets, dual insert points, hi- and lo-pass filters @ 24dB/octave, four-band parametric EQ with band curve selection, and Digico’s renowned DYN 1 (compressor, de-esser or multiband compressor) and DYN 2 (gate, compressor or ducker) modules. So whether you’re running a large show or a small club gig, the SD10 has you covered.

With eight mic/line inputs, eight line outputs, eight mono AES I/O, two MADI connections, and 16 GPI and GPO connections, this console can accommodate a wide range of audio applications. Plus, the SD10 works seamlessly with the DiGiCo SD-Rack for even more interfacing options.
