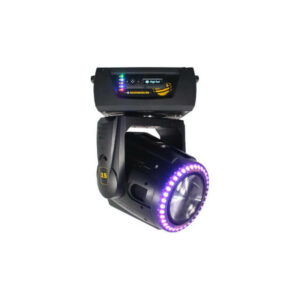

Introducing the SHOWGUN 2.0 LED Fixture – the most advanced automated lighting luminaire on the market today. This fixture was designed with one goal in mind: to provide power, features, and lighting design possibilities that are unmatched by any other fixture. With its radical rethinking of traditional automated lighting design, SHOWGUN is shaping the future of stage and theatrical lighting.

The Showgun 2.0 allows you to create beams of light in three dimensions: in the air, on the stage surface, and at the fixture itself. The LED Tracking System creates a unique homogenously mixed RGB LED circular array that produces more than 5000 lumens of output and allows you to match the color of the main output beam or project a complementary color.

Featuring a proprietary, optically accurate polymer microfresnel lens, the SHOWGUN 2.0 can produce a true focused hard-edge or a brilliant soft-edge combination, without the need for two separate fixture types. This makes it ideal for projecting HES Litho images, as well as exceeding industry standards for soft edge performance.

With two short arc metal halide lamp options, it offers different color temperatures to best suit your needs. The recommended MSR 2000/2 SA lamp (7,000 K) and the MSR 2000 (6,000 K) lamp both use a novel fast fit socket design that allows for a more compact reflector combination. This advanced product produces over 100,000 lumens of output, making it perfect for any lighting application.

Fixture
• Proprietary Short Arc Lamp and optics produce exceptional light output
• Variable beam angles for SHOWGUN hard edge and soft edge
• Zoom range from 9 – 18 degrees
• Four fully rotating, indexable lithopattern gobos
• Blacklight projection filter
• Variable iris
• Variable strobe, Electronic strobe
• Light Burst lamp boosting
• Remote focus
• Full optical dimming and fade to black
• Smooth CMY color mixing provides and infinite palette of color
• Tracking and Independent modes selectable via DMX
• Independent color flag control supports TriColor effects
• LED Tracking Ring produces over 5000 lumens of RGB color.
• Homogeneously mixed RGB LED circular array eliminates the multiple colored RGB look when white or mixed colors are produced.
• Optical encoders automatically correct the head’s position if manually moved

Operation
• 420 degree pan, 216 degree tilt
• High-resolution DMX512 programming control.
• Fat output beam: 10 in (250 mm) diameter.
• Shutter construct parameters including ramp, snap, and synchronous strobing functions.
• Fully dichroic colors that never fade
• LED status indicators streamline troubleshooting.
• Large dot matrix display that allows for 2 lines of text
• 5-pin XLR connectors
• Precision stepper motors control dimmer, shutter function, and color mixing.
• Interchangeable 2- and 3-phase driver boards are easily accessible simplify servicing.

Construction
• Fast, smooth and quiet yoke movement using proprietary multi-phase technology.
• Fast service design for Reflector, Condenser and Output lens
• Modular construction
• Electronic cooling system control
• Exterior design prevents stray light scatter.
• Pan and tilt locks for easy transportation.
